Очень хороший и подробный обзор есть на муське:

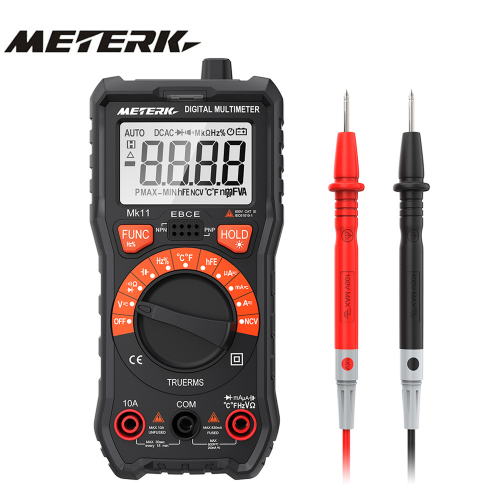

Мультиметр Meterk MK11
У мультиметра заявлены следующие характеристики:
Brand Name: Meterk
Color: Black
Material: ABS
Display: LCD Display with Backlight, 2000 counts
Range Control: Auto Range
Screen Size: 45 * 28mm / 1.77 * 1.10in
Operating Environment: CAT IV 600V and CAT III 1000V
Sampling Time: about 3 times/second
DC Voltage Range: 2V/20V/200V/600V
DC Voltage Resolution: 0.001V/0.01V/0.1V/1V
AC Voltage Range: 2V/20V/200V/600V
AC Voltage Resolution: 0.001V/0.01V/0.1V/1V
DC Current Range: 200.0μA/2000μA/20.00mA/200.0mA/2A/10A
DC Current Resolution: 0.1μA/1μA/0.01mA/0.1mA/0.001A/0.01A
AC Current Range: 200.0μA/2000μA/20.00mA/200.0mA/2A/10A
AC Current Resolution: 0.1μA/1μA/0.01mA/0.1mA/0.001A/0.01A
Frequency Range: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
Frequency Resolution: 0.001Hz/0.01Hz/0.1Hz/0.001KHz/0.01KHz/0.1KHz/0.001MHz
Resistance Range: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance Resolution: 0.1Ω/0.001k1Ω/0.01kΩ/0.1kΩ/0.001MΩ/0.01MΩ
Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF
Capacitance Resolution: 0.001nF/0.01nF/0.1nF/0.001μF/0.01μF/0.1μF/0.001mF/0.01mF
Duty Cycle: 0.1 ~ 99.9%
Temperature Range: -20~1000℃ / -4~1832℉ (The included temperature probe can ONLY support -20~250℃/-4~482℉.)
Temperature Resolution: 1℃/1℉
Transistor hFE Test: 0~1000

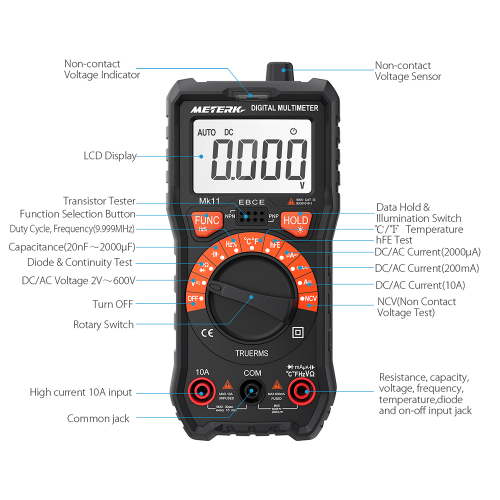

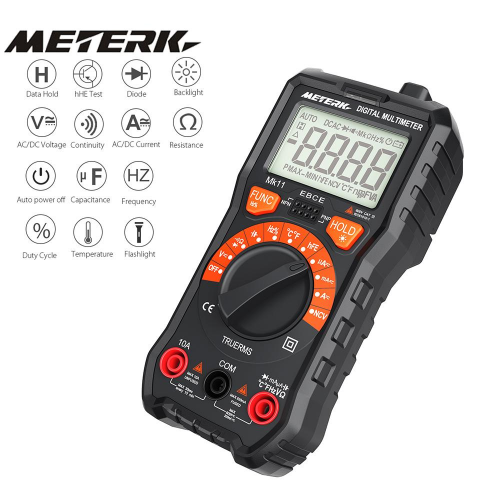

Function: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Duty Cycle, Data Hold, Backlight, Auto Power off, NCV Test, Frequency Test, Temperature Measurement, Continuity Test with LCD, Over Load Protection, Short-circuit Protection, Transistor(hFE), Diode Test
Working Temperature/Humidity: -10~50℃, <80%RH
Storage Temperature/Humidity: -10~50℃, <70%RH
Power Supply: 1 * 9V 6F22 Battery (Included)
Item Size: 150 * 68 * 50mm / 5.91 * 2.68 * 1.97in
Item Weight: 225g / 7.95oz
Package Size: 16.5 * 11 * 6.0cm / 6.50 * 4.33 * 2.36in
Package Weight: 412g / 14.53oz
Акция продлится с 3 по 6 августа включительно.
Рейтинг купона или акции: +1
